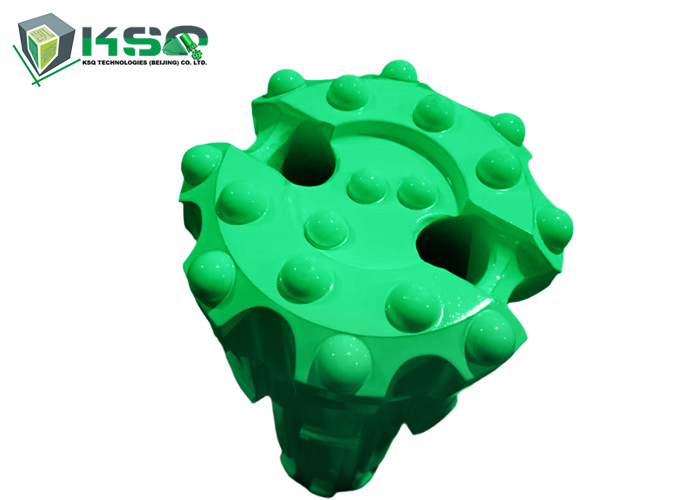

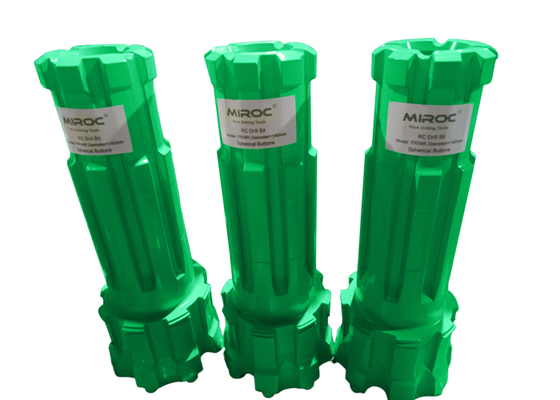

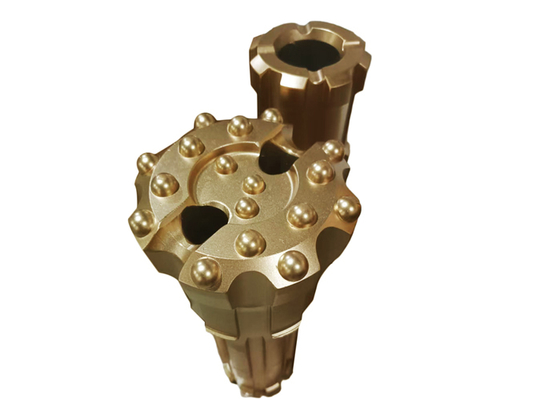

Name: PR54R RC Hammer Drill Bit for Reverse Circulation DTH Hammer
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: PR54R RC Hammer Drill Bit
Price: 508.50 USD
Availability: InStock

Aperçu Produits Les outils de forage

PR54R RC Hammer Drill Bit for Reverse Circulation DTH Hammer

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	MIROC
Certification:	ISO
Numéro de modèle:	PR54R RC Hammer Drill Bit

Conditions de paiement et expédition:

Quantité de commande min:	1
Délai de livraison:	20-30
Capacité d'approvisionnement:	3000

Contact

Description de produit détaillée

Processus de fabrication:	Forgeage	Matériel:	Acier en alliage
Avantage:	Haute performance	Couleur:	Par demande
Nom de pièces:	Peu de perceuse de DTH	Usage:	Trou Dlling
Mettre en évidence:	RC hammer drill bit for DTH hammer , reverse circulation drill bit for rock drilling , PR54R RC hammer bit with warranty

PR54R RC Hammer Drill Bit for Reverse Circulation DTH Hammer

Product Specifications

Attribute	Value
Manufacturing Process	Forging
Material	Alloy Steel
Advantage	High Performance
Color	Per Request
Parts Name	DTH Drill Bits
Usage	Hole Drilling

Product Description

RC series reverse circulation DTH Hammer is mainly used for deep exploration drilling and stope ore grade control. This reverse circulation drill bits are widely used in the following application fields:

Geologic exploration samples
Oil wells and ore mining

Specifically designed to work with RC Hammers.

Available Sizes

3" RC Bits: diameter (86mm-102mm), shank (RE531)
4" RC Bits: diameter (114mm-127mm), shank (RE004, RE004R)
4.5" RC Bits: diameter (121mm-133mm), shank (RE542, RE543)
5" RC Bits: diameter (113mm-146mm), shank (RE545, PR40)
5.5" RC Bits: diameter (133-146mm), shank (RE547, PR52, PR54, RC45, AD670)

Other sizes available upon customer request. Customization available.

Technical Specifications (PR54/54R)

Diameter mm	Diameter inch	No x Button diameter	Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No
136	5 3/8	8 x 16mm	6x16+3x14	35	2	134	19.0	PR54-136
140	5 1/2	8 x 16mm	6x16+3x14	35	2	138	19.3	PR54-140
143	5 5/8	8 x 16mm	6x16+3x14	35	2	141	19.5	PR54-143
146	5 3/4	8 x 16mm	6x16+3x14	35	2	144	19.6	PR54-146
