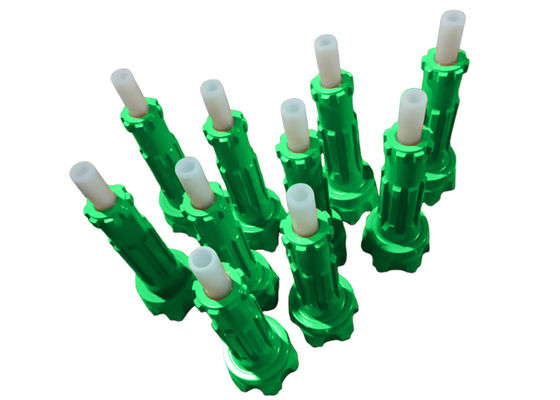

Name: DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: DHD3.5-95 mm
Price: 508.50 USD
Availability: InStock

Aperçu Produits Les outils de forage

DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig

Détails sur le produit:

Lieu d'origine:	CHINE
Nom de marque:	MIROC
Certification:	ISO
Numéro de modèle:	DHD3.5-95 mm

Conditions de paiement et expédition:

Quantité de commande min:	1
Délai de livraison:	20-30
Capacité d'approvisionnement:	3000

Contact

Description de produit détaillée

Usage:	Forage de puits, exploitation minière, construction, carrières	Forme - Visage:	Plat ou concave ou convexe
Pression atmosphérique:	Haute pression d'air	Technologie:	Insertion thématique
Taper:	Peu de marteau de DTH	Matériel:	Acier en alliage
Qualité:	marques 100% supérieures de classe du monde de similitude de qualité	Avantages:	Haute qualité et prix d'usine
Mettre en évidence:	DTH hammer drill bit for mining , 95mm rock drilling tool , water well drilling rig bit

DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig

Product Description

The DHD3.5 drill bit is a common DTH hammer drill bit model, widely used in mining, geological exploration, water well drilling, and construction projects. It connects with the drill pipe through API standard threads to ensure stability and reliability.

Manufactured with high-quality materials and advanced technology, the DHD3.5 drill bit offers extended service life and reduced replacement frequency.

This high air pressure DTH drill bit features our newest design and represents one of the most advanced DTH drill bits available worldwide.

Applications

Ideal for use in mining, energy, metallurgy, geology, coal, water conservancy, chemical industry, and road construction applications.

Our Advantages

Complete solution provider (DTH drill bit, DTH hammer, DTH Drill Rod, and value-added services)
Lower energy consumption with higher impact frequency - drilling speed is 15%-30% higher than other DTH Hammer series
Simple structure with reliable parts, long lifespan, and easy, cost-effective maintenance
Reduced air and oil consumption (approximately 10% lower oil consumption than models with foot valves)
Check valve can be replaced with one featuring a bigger air controlling hole for more efficient cuttings discharge

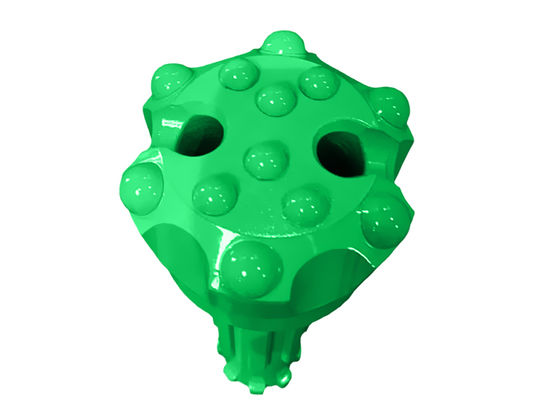

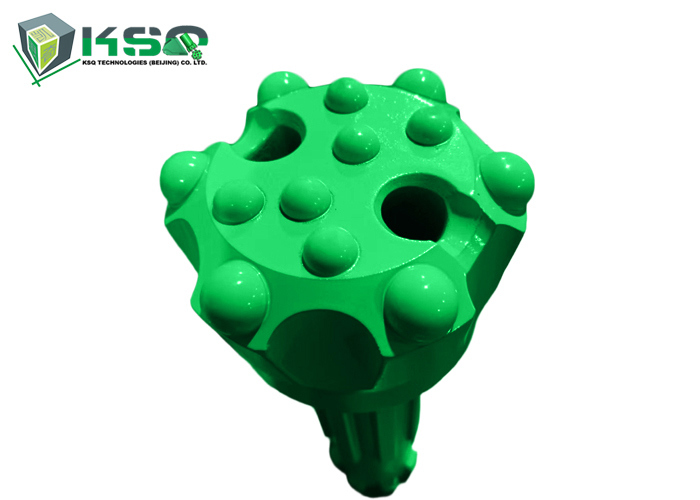

DHD3.5 Ballistic Convex Face Specifications

Bit Diameter (mm)	Bit Diameter (inch)	Buttons (Front)	Buttons (Gauge)	Flushing Holes	Weight (kg)	Part Number
90	3 1/2	4×12, 2×12	8×12	2	4.5	4148301219
95	3 3/4	4×12, 2×12	8×12	2	4.8	4148301220
100	3 7/8	4×13, 2×13	8×13	2	5	4148301221
105	4 1/8	4×14, 2×14	8×14	2	5.5	4148301222
