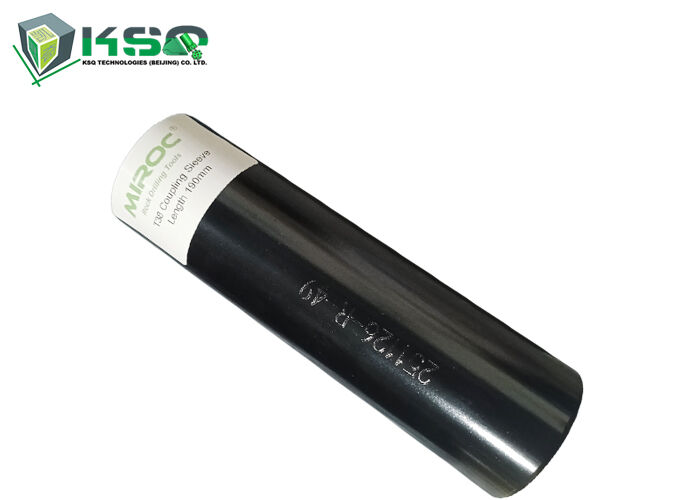

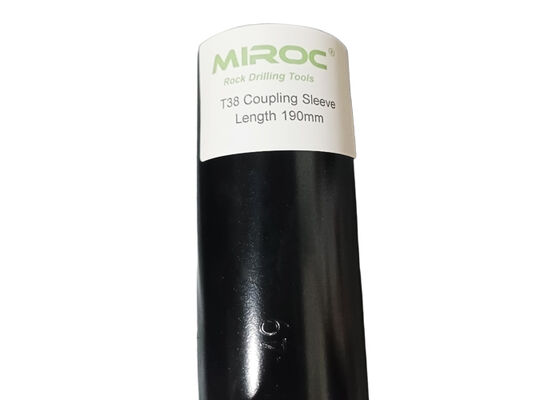

Name: T38-190 mm Carbon Steel Semi-Bridge Coupling Sleeves for Rock Drilling and Mining
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T38-190mm
Price: 508.50 USD
Availability: InStock

Aperçu Produits Les outils de forage

T38-190 mm Carbon Steel Semi-Bridge Coupling Sleeves for Rock Drilling and Mining

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	MIROC
Certification:	ISO
Numéro de modèle:	T38-190mm

Conditions de paiement et expédition:

Quantité de commande min:	1
Délai de livraison:	20-30
Capacité d'approvisionnement:	3000

Contact

Description de produit détaillée

Numéro de modèle.:	T38-190	Usage:	Extraction de charbon, extraction de minerai
Matériel:	Acier au carbone	Qualité:	haute qualité
Utiliser:	La dérive et la construction de tunnels	Taper:	pont complet, semi-pont, même diamètre, etc.
Type de fil:	R22, R25, R28, R32, R38, T38, T45, T51	Diamètre:	33mm-76mm
Longueur:	140mm-250mm	couleur:	Personnalisation acceptée
Mettre en évidence:	T38-190 mm Coupling Sleeves , Carbon Steel Coupling , Semi-Bridge Rock Drilling Coupling

T38-190 mm Coupling Sleeves for Mining and Rock Drilling

Our comprehensive range of rock drilling tools includes adapter couplings, cross-over adapter couplings, and coupling sleeves designed for demanding mining and drilling applications.

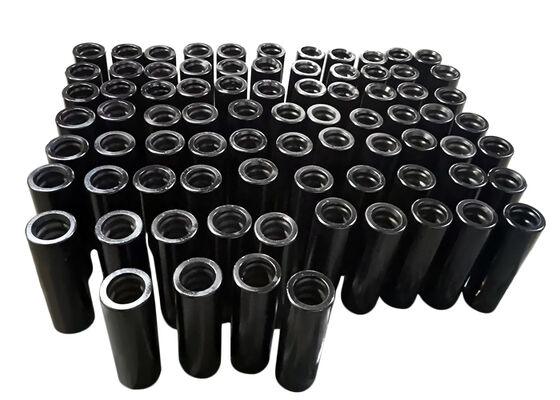

Coupling Sleeves Overview

Coupling sleeves (also known as couplings) are essential components when using rock drills with male shank adapters and conventional drifter rods. They connect the adapter to the rod, ensuring proper contact for efficient energy transmission. Couplings can also connect multiple rods together and feature a middle stop to prevent over-threading onto drill rods. We manufacture both semi-bridge and full bridge coupling sleeves for percussive tools.

Semi-Bridge Coupling Features

Semi-bridge couplings are the most commonly used type in the market, featuring:

Small non-threaded bridge in the center
Steel cannot thread past bridge area
Smaller diameter steel end portions fit together in the center bridge area
Most suitable for high torque machines
Most rope and HM threaded couplings are semi-bridged

T38-190 semi-bridge type coupling provides reliable performance in demanding conditions.

Product Specifications

Length	Diameter	Thread	Weight	Part Number
R25 Coupling Sleeve
150 mm (6 inch)	35 mm (1 3/8 inch)	R25	0.7 kg	4148300429
155 mm (6 1/9 inch)	44 mm (1 3/4 inch)	R25	1.0 kg	4148300430
160 mm (6 2/7 inch)	38 mm (1 1/2 inch)	R25	1.3 kg	4148300431
R28 Coupling Sleeve
150 mm (6 inch)	40 mm (1 4/7 inch)	R28	0.9 kg	4148300483
170 mm (6 2/3 inch)	55 mm (2 1/6 inch)	R28	2.0 kg	4148300484
R32 Coupling Sleeve
150 mm (6 inch)	44 mm (1 3/4 inch)	R32	1.0 kg	4148300646
160 mm (6 2/7 inch)	44 mm (1 3/4 inch)	R32	1.1 kg	4148300647
R38 Coupling Sleeve
170 mm (6 2/3 inch)	55 mm (2 1/6 inch)	R38	1.9 kg	4148300703
190 mm (7 1/2 inch)	55 mm (2 1/6 inch)	R38	2.1 kg	4148300704
T38 Coupling Sleeve
190 mm (7 1/2 inch)	55 mm (2 1/6 inch)	T38	2.1 kg	4148300803
T45 Coupling Sleeve
210 mm (8 1/4 inch)	63 mm (2 1/2 inch)	T45	3.0 kg	4148300881
210 mm (8 1/4 inch)	66 mm (2 3/5 inch)	T45	3.3 kg	4148300882
T51 Coupling Sleeve
225 mm (8 6/7 inch)	71 mm (2 4/5 inch)	T51	4.6 kg	4148300961
225 mm (8 6/7 inch)	76 mm (3 inch)	T51	4.8 kg	4148300962
235 mm (9 1/4 inch)	72 mm (2 5/6 inch)	T51	4.7 kg	4148300963
235 mm (9 1/4 inch)	77 mm (3 inch)	T51	4.9 kg	4148300964

Complete Product Range

1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer for water well, oil, gas and construction drilling
Eccentric overburden drilling equipment
Hole opener bits
Rock thread bits (R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60)
Extension rods, M/F rods, M/M rods, drifter rods
Shank adapters, coupling sleeves and all types of adapters

Competitive Advantages

Compared with overseas brands, our products offer significant benefits:

Over 95% compatibility with original equipment manufacturer specifications
Competitive pricing compared to premium brands with superior quality over smaller manufacturers
